Display Frame Prototype Manufacturing

High-precision display frame prototypes with tight tolerances, refined edges, and optical alignment accuracy for automotive interface validation.

Overview

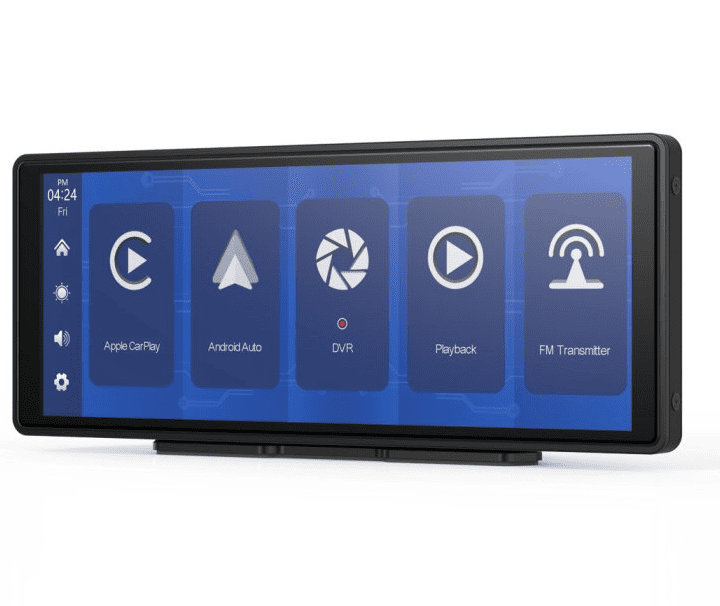

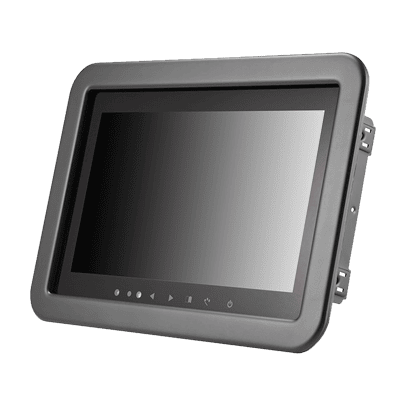

Precision Display Frame Prototypes

We manufacture display frame prototypes with precise control over bezel geometry, edge definition, and mounting interfaces, ensuring proper alignment with screens and adjacent interior components.

Our services support low-volume production of display housings and frames, including fine detailing, coating, and marking processes required for assembly validation and user interface evaluation.

Challenge

Challenge & Solutions For Display Frame Prototype

01

Tight Tolerances

We achieve high dimensional accuracy for display openings and mounting features, ensuring correct screen fitment and consistent gaps critical for automotive interior integration.
02

Edge Quality

We produce clean, sharp edges and controlled radii, preventing light leakage and ensuring refined visual transitions around display interfaces.
03

Surface Defects

We minimize tool marks and imperfections through optimized machining and finishing, delivering smooth surfaces suitable for high-visibility interior components.
04

Optical Alignment

We maintain strict positional accuracy for display interfaces, supporting correct alignment of screens, touch panels, and surrounding trim elements.
05

Material Stability

We select materials with stable mechanical properties to maintain frame integrity under thermal variation and long-term interior operating conditions.

Capabilities

Display Frame Prototype Technical Specs

Key display frame prototype specifications, including machining precision, feature detail limits, materials, and high-quality surface finishing capabilities.

Manufacturing Parameter	Technical Specification
Max Part Size	800 × 500 × 300 mm
Machining Capability	High-precision 3-axis & 5-axis CNC machining
Dimensional Tolerance	±0.02 – 0.05 mm (critical fit areas)
Surface Finish	Ra 0.4 – 1.6 µm (cosmetic-grade surfaces, polishing available)
Inspection Method	Full CMM inspection + visual cosmetic inspection
Supported Materials	ABS, PC, PMMA (acrylic), aluminum, glass-filled plastics
Assembly Compatibility	Snap-fit, adhesive bonding, and fastener integration supported
Lead Time	3 – 7 business days (prototype) / 10–15 days (low-volume production)

Explore More Parts

01 /

Why Choose Us

Why Engineers Choose Our Display Frame Prototype

01

Bezel Precision

Accurate frame geometry ensures proper display integration and visual consistency.
02

Surface Quality

Refined finishes meet high standards for visible interior components.
03

Fine Features

Capability to produce intricate details for modern display frame designs.

FAQs

Frequently Asked Questions

What tolerances can you achieve for bumper prototypes?

We achieve ±0.02 mm to ±0.05 mm tolerances, verified by CMM inspection reports to ensure dimensional accuracy and reliable fitment for assembly and validation.

Do you support automotive-grade materials for functional testing?

We machine ABS, PC, PP, and aluminum alloys, supporting functional testing, structural validation, and material performance evaluation aligned with automotive prototype requirements.

Can you meet surface finish requirements for aerodynamic testing?

We control surface roughness through optimized machining and secondary finishing, achieving consistent Ra values suitable for wind tunnel testing and appearance validation.

How do you handle oversized bumper prototype machining?

We segment large parts and use precision bonding and alignment methods to ensure structural integrity, accurate geometry, and consistent performance across the assembled prototype.

What is your lead time for complex bumper prototypes?

Typical lead time is 7–10 business days, depending on geometry and material, supporting fast iteration cycles and timely automotive development and validation schedules.
