Precision Light Guide Prototype Machining

Accurate light guide prototype created with quality material and perfect surface finish, and with fast delivery to meet your automotive lighting project.

Overview

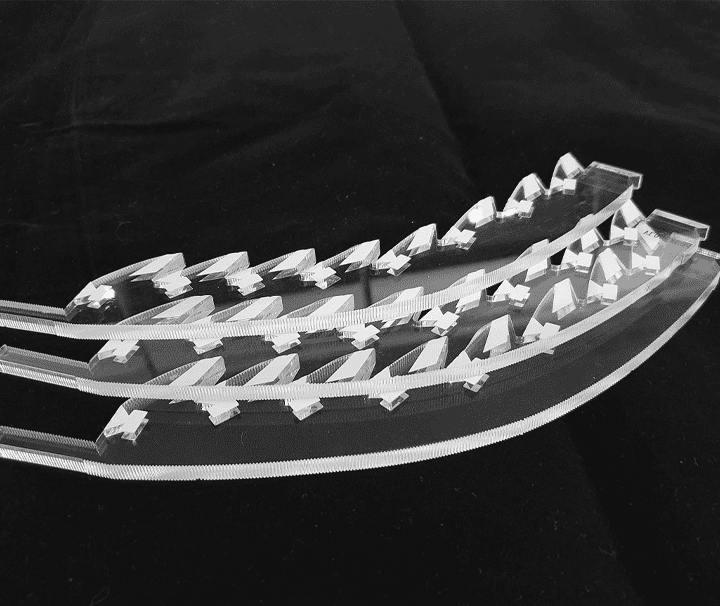

High-Performance Automotive Light Guide Machining

We specialize in manufacturing optical-grade light guides, prioritizing total internal reflection, refractive index accuracy, and ultra-smooth surface finishes to meet rigorous automotive lighting efficiency standards.

From rapid functional iterations to low-volume production for premium trim levels, our facility ensures optical clarity and shortened development cycles for complex light-shaping components.

Challenge

Challenge & Solutions For Light Guide Prototype

01

Internal Optical Clarity

We use specialized diamond milling tools and slow-feed rates to eliminate internal micro-voids, ensuring maximum light throughput without scattering.
02

Intricate Micro-Optics

Using high-precision 5-axis machining, we accurately replicate complex prism arrays and micro-textures that control light distribution across the guide.
03

Surface Haze Reduction

Our multi-stage vapor polishing process removes all machining marks, achieving a mirror-like finish essential for high-efficiency total internal reflection.
04

Thermal Expansion Control

We utilize heat-stabilized PMMA and polycarbonate materials to maintain dimensional accuracy when the guide is subjected to high-intensity LED heat.
05

Complex Mounting Fitment

In-process probing ensures that the light guide’s snap-fit features and housing interfaces are machined to precise tolerances for vibration-free assembly.

Capabilities

Technical Specification of Light Guide Prototype

Comprehensive technical parameters focused on optical performance, material clarity, and machining precision for automotive light guide prototypes.

Parameters	Details
Max Part Size	1200 × 300 × 200 mm
Machining Capability	Diamond Turning & 5-Axis CNC
Dimensional Tolerance	+/-0.02 mm to +/-0.05 mm
Surface Roughness	Ra < 0.02 um
Inspection Method	Photometric & CMM Verification
Supported Materials	Optical PMMA, PC.
Lead Time	3–7 Business Days

Explore More Parts

01 /

Why Choose Us

Why Engineers Choose Our Light Guides

01

Micron Precision

Our capabilities guarantee exact refractive geometry for optics.
02

Fast Iteration

Rapid prototyping cycles allow for immediate optical performance validation.
03

Quality Standards

Every part undergoes strict dimensional verification for compliance.

FAQs

Frequently Asked Questions

What tolerances can you achieve for bumper prototypes?

We achieve ±0.02 mm to ±0.05 mm tolerances, verified by CMM inspection reports to ensure dimensional accuracy and reliable fitment for assembly and validation.

Do you support automotive-grade materials for functional testing?

We machine ABS, PC, PP, and aluminum alloys, supporting functional testing, structural validation, and material performance evaluation aligned with automotive prototype requirements.

Can you meet surface finish requirements for aerodynamic testing?

We control surface roughness through optimized machining and secondary finishing, achieving consistent Ra values suitable for wind tunnel testing and appearance validation.

How do you handle oversized bumper prototype machining?

We segment large parts and use precision bonding and alignment methods to ensure structural integrity, accurate geometry, and consistent performance across the assembled prototype.

What is your lead time for complex bumper prototypes?

Typical lead time is 7–10 business days, depending on geometry and material, supporting fast iteration cycles and timely automotive development and validation schedules.
