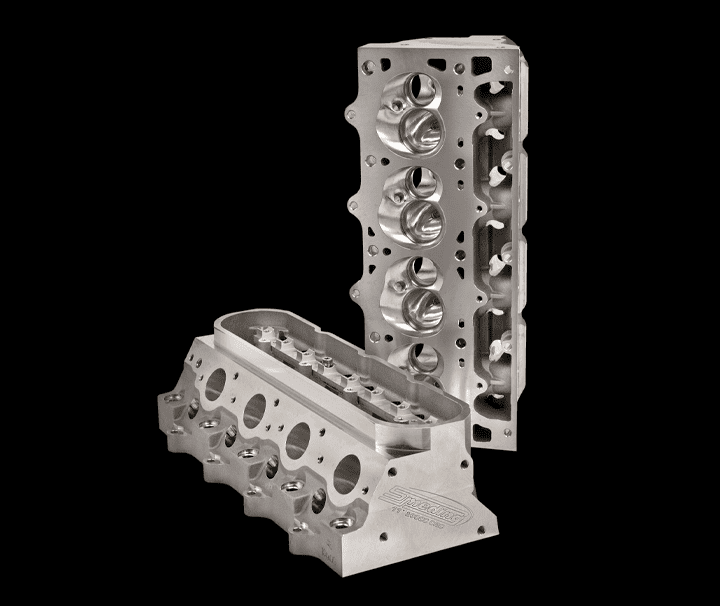

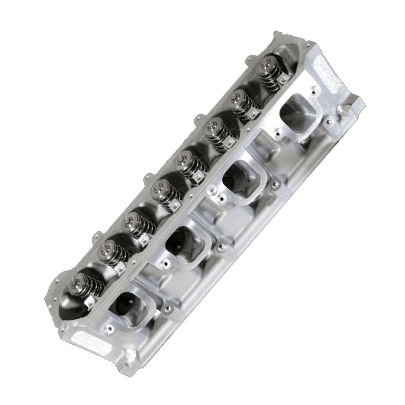

Engine Cylinder Head

Precision-machined engine cylinder head prototypes with complex porting, thermal durability, and fast turnaround for combustion testing and validation.

Overview

Advanced Engine Cylinder Head Prototyping

We produce engine cylinder head prototypes with multi-angle valve seats, combustion chamber accuracy, and optimized intake/exhaust port geometry using advanced CNC machining and strict automotive-grade quality controls.

Our team supports prototype and low-volume builds, offering flexible material sourcing, quick iteration cycles, and detailed inspection data to accelerate engine development, airflow testing, and performance validation.

Challenge

Challenges & Solutions For Engine Cylinder Head

01

Port Complexity

We machine intricate intake and exhaust port geometries with high precision, ensuring optimized airflow paths and accurate replication of performance-critical design features.
02

Heat Resistance

Carefully selected alloys and controlled machining strategies help maintain structural integrity and dimensional stability under repeated thermal cycling during engine testing conditions.
03

Seal Integrity

Critical gasket surfaces and sealing interfaces are machined flat and true, ensuring reliable compression sealing and preventing leakage during combustion validation tests.
04

Valve Accuracy

Precision machining of valve seats and guides ensures correct alignment, improving valve timing consistency and supporting accurate functional testing of valvetrain components.
05

Design Iteration

Efficient production workflows enable rapid updates to combustion chamber shapes and port designs, supporting iterative testing and continuous performance refinement.

Capabilities

Engine Cylinder Head Technical Specs

Key specifications for precise engine cylinder head prototyping, ensuring accuracy, performance, and manufacturability.

Manufacturing Parameter	Technical Specification
Max Part Size	1000 × 600 × 500 mm
Machining Capability	3-axis & 5-axis CNC machining
Dimensional Tolerance	±0.05 mm (critical features)
Surface Finish	Ra 0.8 – 3.2 µm
Material Options	Aluminum alloys, cast iron, billet steel
Inspection Method	Full CMM inspection with reports
Lead Time	5–10 days prototype, 10–20 days small batch

Explore More Parts

01 /

Why Choose Us

Why Engineers Choose Our Engine Cylinder Head

01

Combustion Focus

Designed to support accurate combustion chamber validation and airflow studies.
02

Geometry Precision

Ensures exact replication of ports, chambers, and valve interfaces.
03

Test Readiness

Prototypes delivered ready for assembly, testing, and validation workflows.

FAQs

Frequently Asked Questions

What tolerances can you achieve for bumper prototypes?

We achieve ±0.02 mm to ±0.05 mm tolerances, verified by CMM inspection reports to ensure dimensional accuracy and reliable fitment for assembly and validation.

Do you support automotive-grade materials for functional testing?

We machine ABS, PC, PP, and aluminum alloys, supporting functional testing, structural validation, and material performance evaluation aligned with automotive prototype requirements.

Can you meet surface finish requirements for aerodynamic testing?

We control surface roughness through optimized machining and secondary finishing, achieving consistent Ra values suitable for wind tunnel testing and appearance validation.

How do you handle oversized bumper prototype machining?

We segment large parts and use precision bonding and alignment methods to ensure structural integrity, accurate geometry, and consistent performance across the assembled prototype.

What is your lead time for complex bumper prototypes?

Typical lead time is 7–10 business days, depending on geometry and material, supporting fast iteration cycles and timely automotive development and validation schedules.
