Electric Drive
Motor Prototyping

High-precision electric drive motor prototypes with optimized rotor alignment, thermal stability, and fast turnaround for EV performance and drivetrain validation.

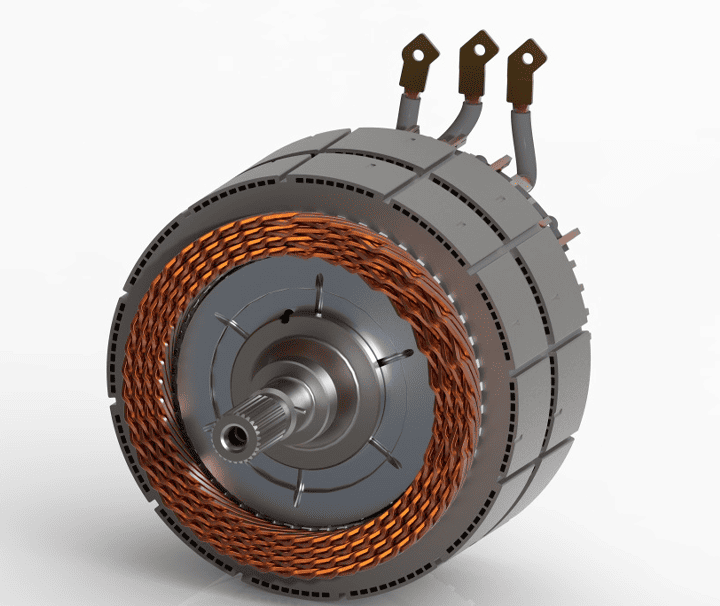

Overview

Electric Drive
Motor Solutions

We produce electric drive motor prototypes with precise rotor-stator alignment, optimized housing integration, and controlled air gap accuracy to ensure efficient torque delivery and stable motor performance.

Our services support EV development programs with prototype and low-volume manufacturing, offering material flexibility, rapid design iterations, and full inspection reporting for motor efficiency testing and drivetrain validation.

Challenges

Challenges & Solutions For Electric Drive Motors

01

Rotor Balance

We ensure precise rotor machining and balancing, minimizing vibration and enabling smooth rotational performance under high-speed electric motor operation conditions.
02

Thermal Load

Optimized material selection and structural design help manage heat buildup, maintaining stable motor performance during continuous high-power EV operation.
03

Air Gap Precision

Critical stator and rotor interfaces are machined with tight tolerances to maintain consistent air gap, improving motor efficiency and torque output stability.
04

Housing Fit

Motor housing components are machined for precise alignment, ensuring secure assembly of stator, rotor, and cooling systems within the drivetrain structure.
05

Efficiency Loss

Controlled surface finish and geometry accuracy reduce friction and magnetic losses, supporting higher efficiency and improved energy conversion performance.

Capabilities

Electric Drive Motor Technical Specs

Key specifications for electric drive motor prototypes, ensuring precision, efficiency, and performance reliability.

Manufacturing Parameter	Technical Specification
Max Part Size	800 × 600 × 500 mm
Machining Capability	3-axis & 5-axis CNC machining
Dimensional Tolerance	±0.02 – ±0.05 mm (critical rotor/stator areas)
Surface Finish	Ra 0.8 – 3.2 µm
Material Options	Aluminum alloys, silicon steel, copper components
Inspection Method	CMM + dynamic balance testing
Lead Time	6–12 days prototype, 12–25 days small batch

Explore More Parts

01 /

Why Choose Us

Why Engineers Choose Our Electric Drive Motors

01

Torque Efficiency

Optimized design improves power delivery and energy conversion.
02

Rotational Stability

Ensures smooth, low-vibration operation at high motor speeds.
03

Integration Accuracy

Supports precise assembly with EV drivetrain and cooling systems.

FAQs

Frequently Asked Questions

What tolerances can you achieve for bumper prototypes?

We achieve ±0.02 mm to ±0.05 mm tolerances, verified by CMM inspection reports to ensure dimensional accuracy and reliable fitment for assembly and validation.

Do you support automotive-grade materials for functional testing?

We machine ABS, PC, PP, and aluminum alloys, supporting functional testing, structural validation, and material performance evaluation aligned with automotive prototype requirements.

Can you meet surface finish requirements for aerodynamic testing?

We control surface roughness through optimized machining and secondary finishing, achieving consistent Ra values suitable for wind tunnel testing and appearance validation.

How do you handle oversized bumper prototype machining?

We segment large parts and use precision bonding and alignment methods to ensure structural integrity, accurate geometry, and consistent performance across the assembled prototype.

What is your lead time for complex bumper prototypes?

Typical lead time is 7–10 business days, depending on geometry and material, supporting fast iteration cycles and timely automotive development and validation schedules.
